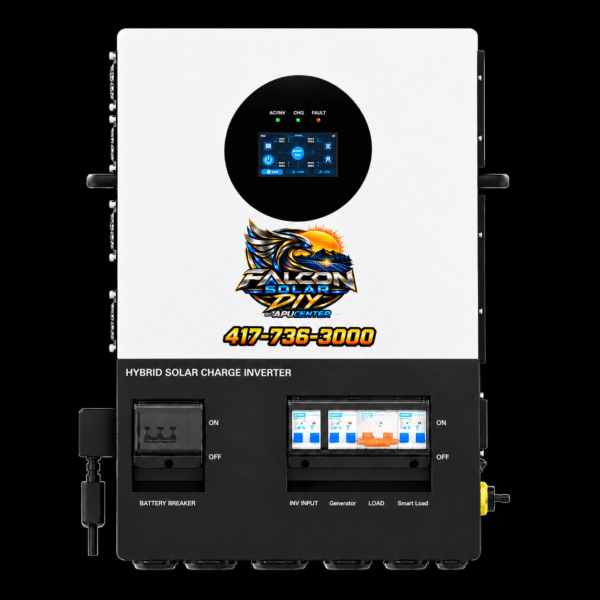

Description

AC mode
Rated input
voltage

120(L1/N, L2/N)/240Vac(L1/L2)

Input phase
voltage range

(85Vac~140Vac)±2%

Frequency 50Hz/60Hz (Auto detection)
Frequency
Range

47±0.3Hz~55±0.3Hz (50Hz);
57±0.3Hz~65±0.3Hz (60Hz);

Overload/
short circuit
protection

Circuit breaker

Efficiency >95%
Conversion
time (bypass
and inverter)

10ms (typical)

Max. AC
Input Current

2pole,200A/200A(L1/L2)

Maximum
bypass phase
overload
current

2pole,200A/200A(L1/L2)

Inverter mode
Output
voltage
waveform

Pure sine wave

Rated output
power (VA)

Split phase: 10000 Split phase: 12000
Single phase: 7200
(limited by the wiring terminals)

Single phase: 7200
(limited by the wiring terminals)

Rated output
power (W)

Split phase: 10000 Split phase: 12000
Single phase: 7200
(limited by the wiring terminals)

Single phase: 7200
(limited by the wiring terminals)

Power factor 1
Rated output
voltage (Vac) 120Vac (L1/N, L2/N)/240Vac(L1/L2)
Output
voltage error

±5%

Output
frequency
range (Hz)

50Hz±0.3Hz/60Hz±0.3Hz

2

Maximum
Efficiency

>91%

Overload
protection

(105% < load <110%) ±5%: report error and turn off the output after 5 minutes;
(110% < load 125% ±5%: report error and turn off the output after 5 seconds;

Peak power

Split phase: 15000VA Split phase: 18000VA
Single phase: 15000VA Single phase: 18000VA

Loaded
motor
capability

5HP 6HP

Output short
circuit
protection

Can protect, after continuous short circuit for 1 second

INV circuit
breaker
phase
specification

2pole, 63A/63A(L1/L2)

Rated battery
input voltage

51.2V (Minimum starting voltage 44V)

Battery
voltage range

40.0Vdc~58.6Vdc±0.6Vdc (Undervoltage alarm/shutdown voltage/overvoltage
alarm /overvoltage recovery… settable on LCD screen)

Power saving
mode
self-consump
tion

Load per phase is null or less than 25W enter power-saving mode

AC charging
Battery type Lead acid or lithium battery
Maximum
charge
current(can
be set)

120A 160A

Charge
current error

±5Adc

Charge
voltage range

40 –58.6Vdc

Short circuit
protection

Circuit breaker

Generator Mode
Rated input
voltage

120(L1/N, L2/N)/240Vac(L1/L2)

Input phase
voltage range

(85Vac~140Vac)±2%

Frequency
Range

40±0.3Hz~70±0.3Hz

Maximum
charge
current(can
be set)

120A 160A

3

Overload/
short circuit
protection

Circuit breaker

Circuit
breaker
phase
specifications

2pole, 63A/63A(L1/L2)

PV charging
Number of
MPPT groups

2

Maximum PV
open circuit
voltage

500Vdc

PV operating
voltage range

90Vdc~485Vdc

MPPT voltage
range

90Vdc~450Vdc

Battery
voltage range

40-58.6Vdc

Maximum PV
input power

9000W+9000W 12000W+12000W

Maximum PV
input current

27A+27A/32A+32A

PV charge
current(can
be set)

200A 250A

Charging
short circuit
protection

Can protect, software immediately protects

Wiring
protection

Reverse polarity protection

Hybrid charging Max charger current specifications (AC charger+PV charger)
Max charger
current(can
be set)

0-200A 0-250A

Certified specifications
Certification
EMC
certification
level
Operating
temperature
range

-10°C to 55°C(>45°C derating)

Storage
temperature
range

-25°C ~ 60°C

4

Humidity
range

5% to 95%(Conformal coating protection)

Noise ≤60dB
Heat
dissipation

Forced air cooling, variable speed of fan

Communicati
on interface

USB/RS485(/WiFi/GPRS)/ Dry node control

Size (L*W*D) 710mm*480mm*145mm
Weight (kg) 37.5
