Description

## High-Capacity Residential Energy Storage

### Technical Specifications

– **Total Energy Storage:** 16.08 kWh
– **Nominal Voltage / Capacity:** 51.2V / 314Ah
– **Maximum Charge & Discharge Current:** 200A
– **Rated Cycle Life:** Up to 10,000 Cycles
– **Maximum System Expansion:** 15 Units in Parallel (241.2 kWh Total)
– **Safety Certification:** UL 1973

### Product Highlights

– **Powerful 16.08 kWh Capacity:** Built with sixteen Grade A 3.2V 314Ah LiFePO4 battery cells, delivering substantial energy storage in a space-conscious design for residential applications.

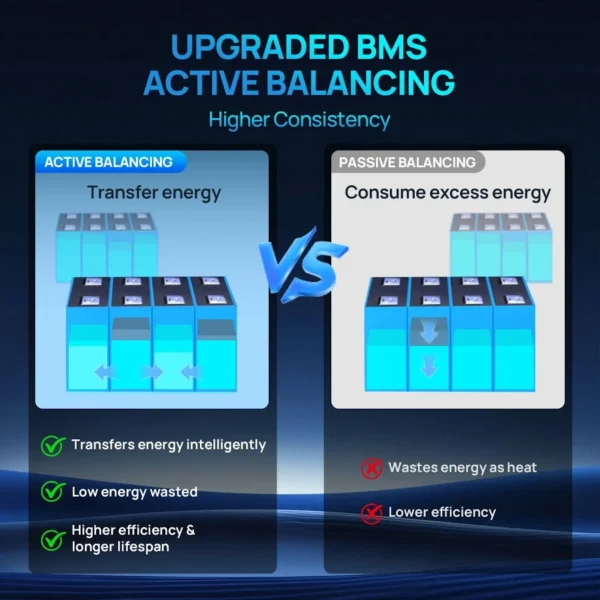

– **Intelligent Active Cell Balancing:** Continuously balances individual cells to help improve charging performance, maintain battery consistency, and support long-term reliability.

– **Advanced 200A Battery Management System:** Supports standard 150A and maximum 200A charge and discharge operation, with integrated pre-charge technology for enhanced system protection.

– **Comprehensive Safety Protection:** Combines intelligent BMS safeguards, a 250A shunt-trip circuit breaker, and an integrated aerosol fire suppression module for multiple layers of protection.

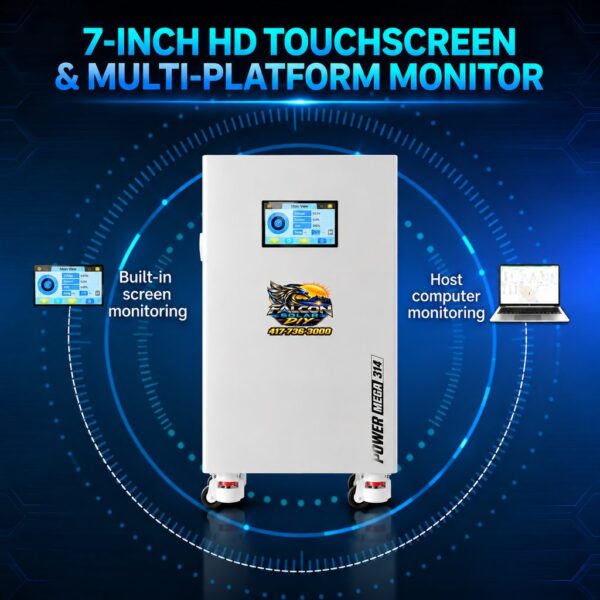

– **Convenient 7-Inch Touchscreen:** Monitor battery performance directly from the built-in display, or access system information remotely through Bluetooth, Wi-Fi, and compatible PC software.

– **Designed for Long-Term Performance:** Engineered for a rated lifespan of up to 10,000 cycles at 0.5C, with greater than 80% state of health under the specified test conditions.

– **Scalable Energy Storage:** Connect up to 15 compatible units in parallel to expand total storage capacity to approximately 241.2 kWh, depending on system configuration and compatibility.
